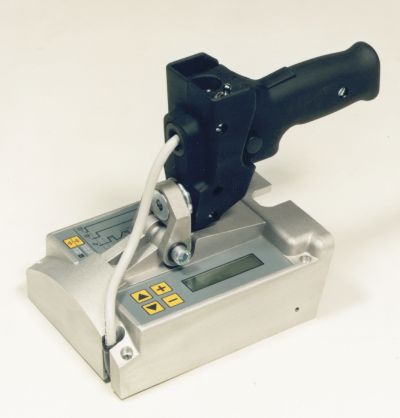

TE450 is a microprocessor
welding control unit for suspended resistance
welding guns. This control unit includes specific functions to be used when working with suspended
welding guns, such as the double stroke control, and a function checking the efficacy of the safety devices which can be eventually installed on the handle of the
machine. It is possible to program 63 different
welding programs, 2 programs can be recalled by an external device on the handle. Each program is formed by 18 programmable parameters which describe the working cycle. Besides the simple 4 times cycle, the control unit enables to carry out
welding processes with pre-weld current, slopes, pulses and post-weld current. The control unit can be programmed for working under two different operating modes: standard one and
constant current. An integrated ammeter allows to know the
welding current used and to set maximum and minimum limits.
MAIN FEATURES
- Simplified programming by 5 push-buttons and LCD display
- Synchronous thyristors drive device with phase shift control for welding current adjustment
- 63 welding programs, 2 programs selectable on the handle
- 18 programmable parameters for each program
- Slope and pulse functions. Pre-weld and post-weld currents
- Adjustment of the welding times in half-periods
- Display of the welding current in kA
- Display of the welding current conduction angle
- Welding current limits or conduction angle limits
- Automatic double stroke function
- Counter of the performed welds
- Compensation of the secondary current to weld oxidised sheets and rods
- Single and automatic cycle
- Delay of first phase shift adjustment, to get the best balance of the machine absorption from mains
- Control of 2 solenoid valves 24 Vdc 7,2 W Max with protected output against short circuit: electrode closing valve and double stroke valve
- Self-adjustment to the network frequency 50/60 Hz

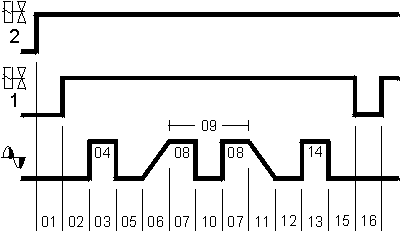

PROGRAMMABLE PARAMETERS
